Universal balancing machine for rotors up to 15 kg Pasio 15 - Schenck Bulgaria

  • Compact design
  • Minimum space requirement
  • Fast and uncomplicated set up
  • Installation without foundations
  • Highest measuring accuracy
  • Ergonomic operator concept
  • Quick change-over from workpiece to the next
  • Suitable for magnetized rotors

Special features

  • Space-saving single-unit design with integral measuring station and measuring unit
  • Easy to operate through permanent calibration – requires no calibration runs
  • Correction in two planes or separate according to static and couple unbalance is possible
  • Rotors can be mounted on their original shafts or on mounting arbors, complete assemblies can be installed in their housing
  • Automatic measuring cycle with infinitely variable settings for acceleration, measuring and braking time.


Range of application

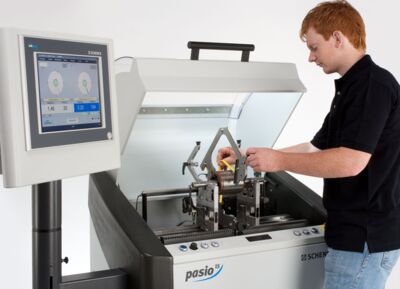

Universal balancing machine Pasio 15 is ideally suited to small work-pieces such as electric armatures – also magnetised - fans and complete assemblies. They are conceived for use in batch production, research and development or in repair shops.

Change-over to new rotor types is straightforward and only requires a minimum of time.

Unbalance correction is made manually by addition of material (e.g. balancing plasticine) directly on the machine or by removal of material on optional manually operated or semi-automated machining units.


  • Hard-bearing, horizontal balancing machine with permanent calibration
  • The complete workplace consists of the following major components: mineral concrete machine table with integrated controls, mechanical balancing unit comprising roller bearings, belt drive, safety enclosure and measuring instrument
  • The machine can be installed without foundations and without bolts and is immediately ready for operation
  • Measuring unit CAB 820 with with touch screen graphics display
  • Optional: Measuring device CAB 920 - the high end solution regarding operation, versatility and accuracy

Технически данни
Data at a glance    Rollers
Weight, max.  [kg]  15
Diameter, max.  [mm]  350
Journal distance, max  [mm]  600
Journal diameter  [mm]  6 - 30
Journal diameter optional  [mm]  30 - 70
Width 1)  [mm]  1700
Depth 1)  [mm]  920
Height 1)  [mm]  1700
Total weight  [kg]  700
Power supply    230 V Wechselstrom, 50 Hz
Belt drive    Klappbügel-Bandantrieb
Drive power  [W]  200
Automatic angle indexing    enthalten
Min. achievable residual unbalance Umar 2)  [gmm/kg]  0,1
Max. sensitivity CAB 820 / 920  [gmm]  0.1
Protective enclosure    ISO 7475 Class C20 (protection against parts flying off)
2-colour painting     RAL 7035 (light grey), RAL 7024 (graphite grey)
Measuring devices
    CAB 820
    CAB 920 Smart Touch
    Software options for CAB 820 and CAB 920
    Test rotor (1.6 kg) wtith test weights
    Color printer for report print-outs with accessories
2) Min. achievable residual unbalance per plane
